The Acebeam H18 is a versatile headlamp which features dual light sources, offering up to 4000 lumens of wide-flood white light and a red light for night vision preservation. It is powered by a single 6400mAh rechargeable 21700 lithium-ion battery, which can be recharged via USB Type-C either directly on the battery or through the torch body's USB-C port, protected by a metal cover. The white light is delivered by four LEDs, available in 6500K cool or 5000K neutral options, producing a smooth, non-PWM wide flood beam for flicker-free illumination. The red light source is specifically designed for night vision preservation. Constructed from aluminium alloy with a hard-anodised finish, the H18 has an IP68 ingress protection rating, making it fully submersible to 2 metres for 30 minutes, and offers 2 metres of impact resistance. A quick-detach bracket allows for easy mounting and removal, complemented by a 180° adjustable tilt for precise beam direction and a breathable headband for comfort. It provides a maximum output of 4000 lumens (6500K variant), a beam distance of 162 metres (6500K variant), and an impressive maximum runtime of 280 hours (ultra low mode).
Features
Dual Light Sources: Features both wide-angle white light and red light for night vision preservation.
Quick Detach Bracket: Allows for fast attachment and removal of the light, secured by a physical safety lock.
180° Adjustable Tilt: The bracket offers 180 degrees of tilt for precise light direction.

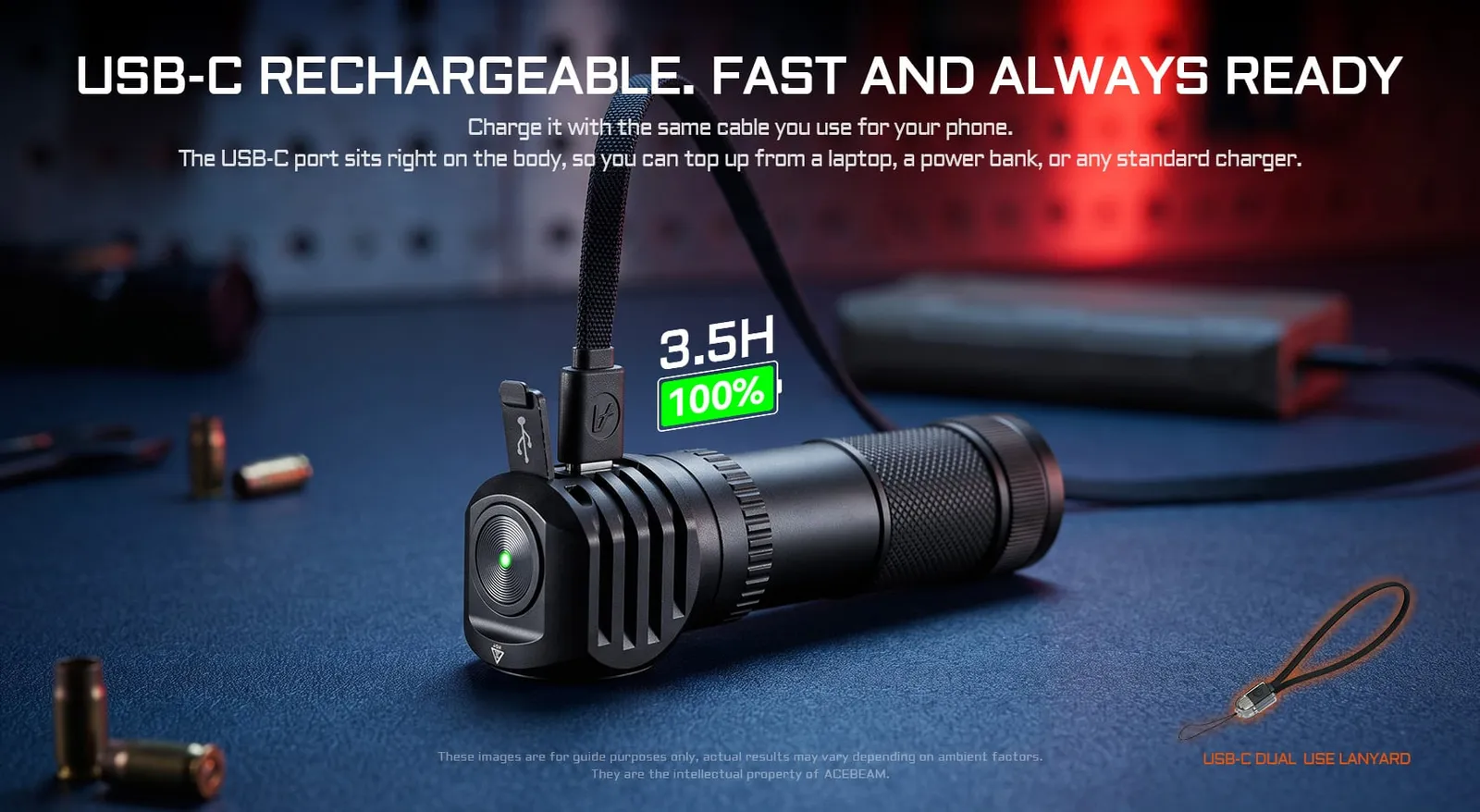

USB-C Rechargeable: Features a USB-C port on the body with a durable metal cover, and the included battery also has a USB-C port for direct charging.

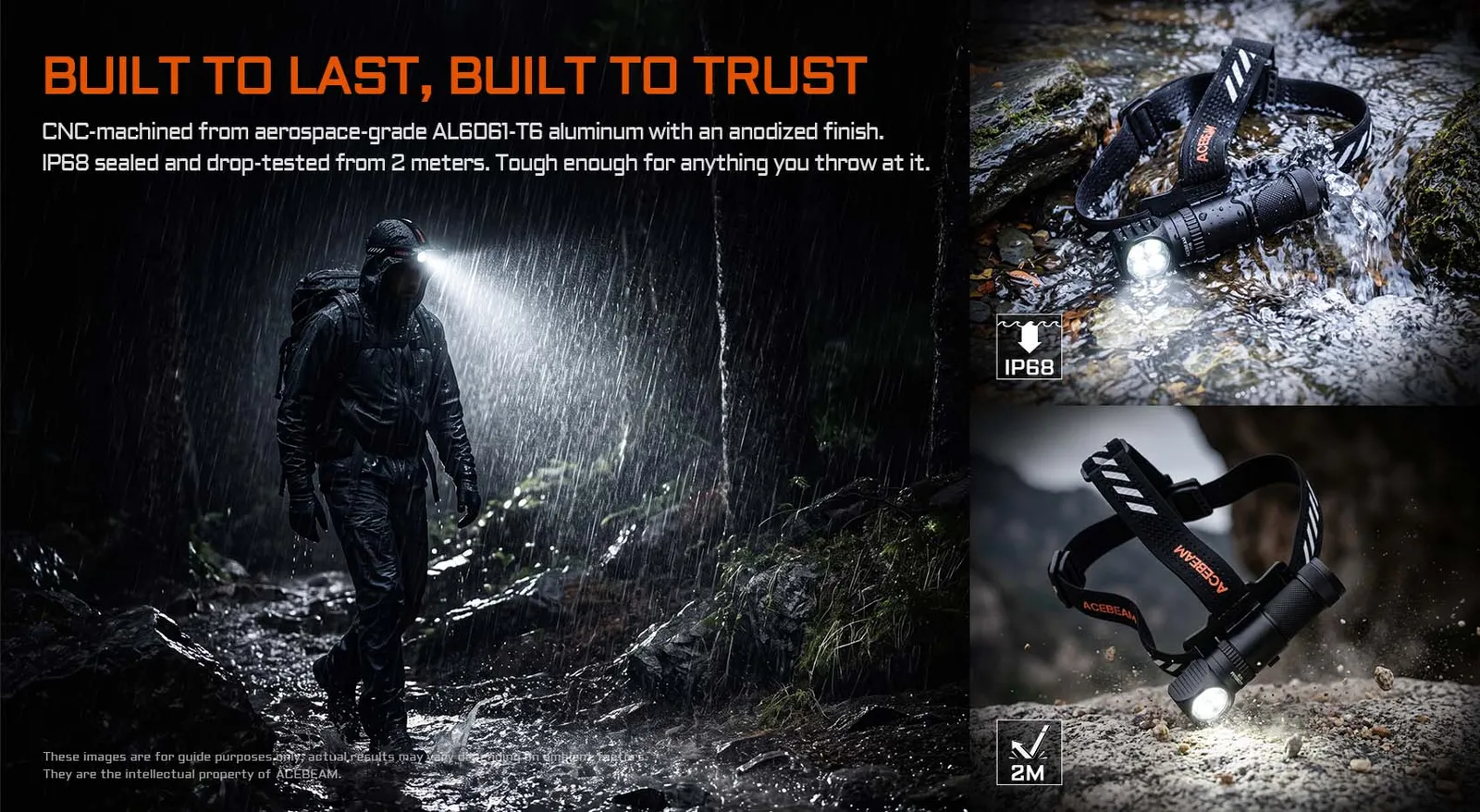

Durable Construction: Made from AL6061-T6 high-quality aluminium alloy with a HA III hard-anodized finish, capable of withstanding a 2-metre drop.
Key Information
Feature
Details
Primary Light Source
4 x 5000K Cool White LEDs
Auxiliary Light Source
1 x Red Light Source
Power Source

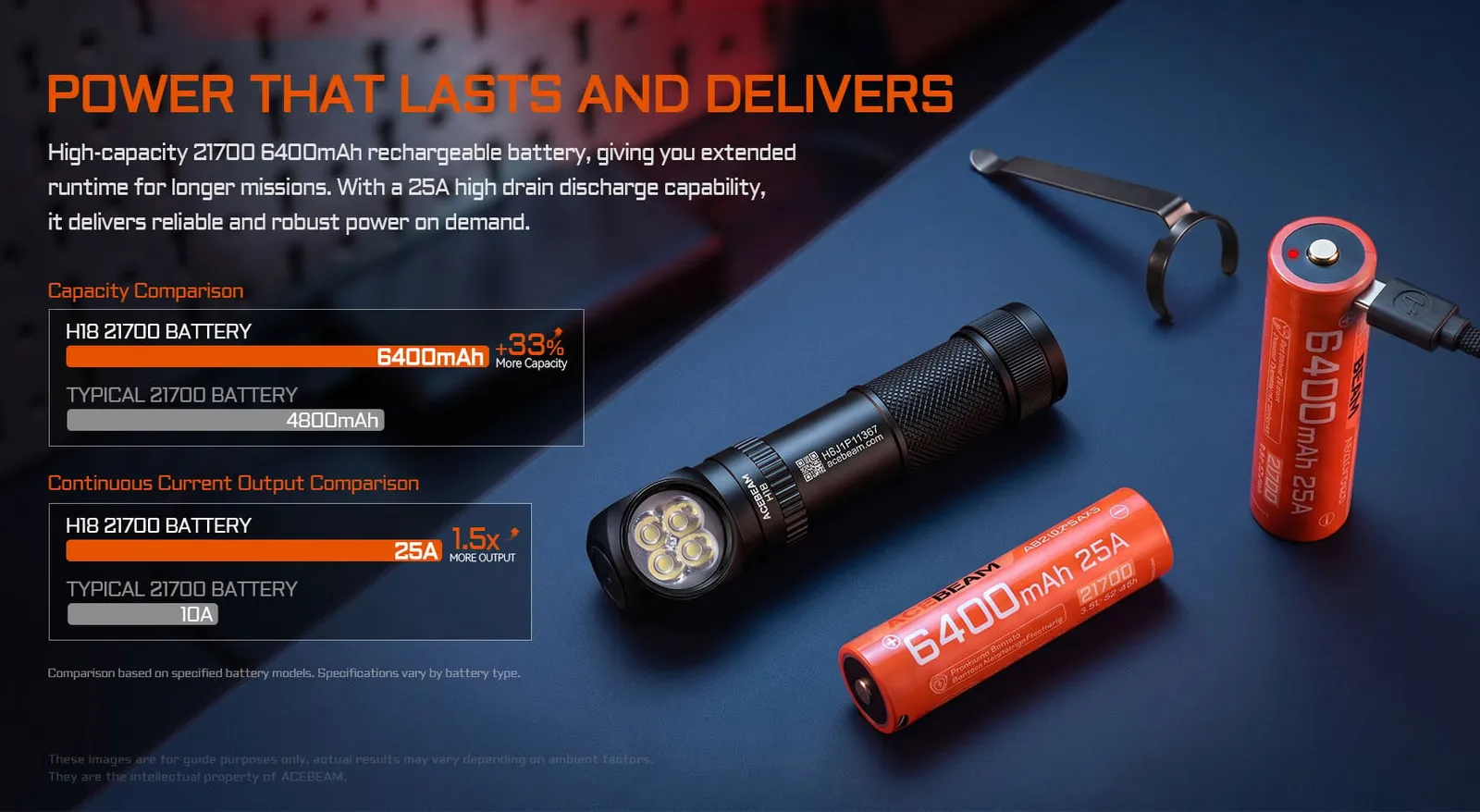

1 x Acebeam 6400mAh Rechargeable 21700 Lithium-ion Battery
Recharging Methods
USB Type-C or
USB Type-C (Charging Port on Battery)
Material
Aluminium alloy
Warranty (Headlamp)
10 years
Warranty (Battery)
1 year
Warranty (Accessories)
1 year
Feature
Details
Primary Light Source
4 x 6500K Cool White LEDs
Auxiliary Light Source
1 x Red Light Source
Power Source
1 x Acebeam 6400mAh Rechargeable 21700 Lithium-ion Battery
Recharging Methods
USB Type-C or
USB Type-C (Charging Port on Battery)
Material
Aluminium alloy
Warranty (Headlamp)
10 years
Warranty (Battery)
1 year
Warranty (Accessories)
1 year
ANSI/PLATO FL1 Specifications
Feature
Measurement
Maximum Light Output
2700 lumens
Maximum Runtime
280 hours
Maximum Beam Distance
140 metres
Peak Beam Intensity
4900 candela
Impact Resistance
2 metres
Ingress Protection Rating
IP68
Feature
Measurement
Maximum Light Output
4000 lumens
Maximum Runtime
280 hours
Maximum Beam Distance
162 metres
Peak Beam Intensity
6561 candela
Impact Resistance
2 metres
Ingress Protection Rating
IP68

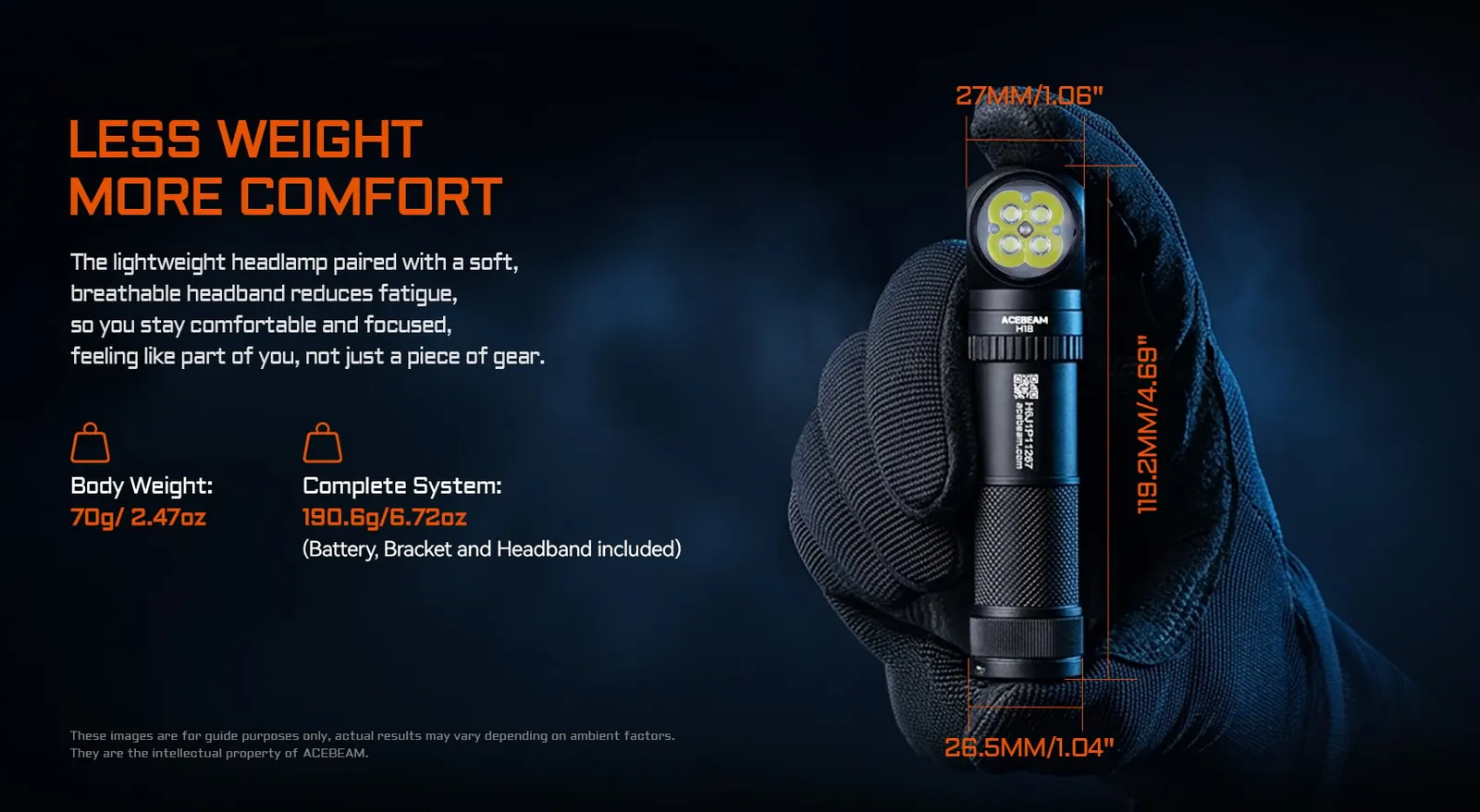

Dimensions
Feature
Measurement
Length
119.2 mm
Head Diameter
27 mm
Body Diameter
23.8 mm
Weight
190.6 g
Additional Data
Mode
Output (Lumens)
Runtime
Distance
Intensity
Ultra Low
7
280h
8 m
16 cd
Low
45
60h
20 m
100 cd
Med 1
220
13h
39 m
380.25 cd
Med 2
420
7h
52 m
676 cd
High
1400 ~ 700
2min ~ 3h 40min
100 m
2500 cd
Turbo
4000 ~ 700
30s ~ 3h 40min
162 m
6561 cd
SOS
45
150h
20 m
100 cd
Mode
Output (Lumens)
Runtime
Distance
Intensity
Ultra Low
6
280h
8m
16 cd
Low
33
60h
17m
72.25 cd
Med 1
160
13h
32m
256 cd
Med 2
300
7h
45m
506.25 cd
High
990 ~ 500
2min ~ 3h 40min
81m
1640.25 cd
Turbo
2700 ~ 500
30s ~ 3h 40min
140m
4900 cd
SOS
33
150h
17m
72.25 cd
Mode
Output (Lumens)
Runtime
Distance
Intensity
Low
4
190h
—
—
Med
15
53h
11m
30.25 cd
High
35
23h
21m
110.25 cd
Turbo
70
8h
25m
156.25 cd
Performance and Runtime Disclaimer
How to read the data: The outputs provided above are maximum outputs for each mode, and the runtimes provided are the time it takes to drop to 10% of the initial output. This is in line with the International Flashlight Testing Standard ANSI FL1.
Any visual representations (graphs) of the data are approximate only.
Read more
The actual output of the torch/headlamp is controlled by an in-built temperature regulation system. As the torch/headlamp heats up, the brightness will drop to prevent overheating. The Turbo modes of torches/headlamps usually drop down significantly after anything from 15 seconds to 2 minutes. High modes often also experience a drop down over time. Medium and Low modes, however, can be constant for very close to the length of time specified. As the torch/headlamp cools down, either from being turned off or from being used on a lower output level, you will be able to access higher brightness levels again.
Example: An output of 2000 lumens and runtime of 5 hours does not mean 2000 lumens for 5 hours — it means it starts at 2000 lumens and drops below 200 lumens after 5 hours of continuous use.
Turbo and high modes may be unavailable or limited as the battery gets low on charge.
Exact specifications can vary between torches, batteries, age and environments.
