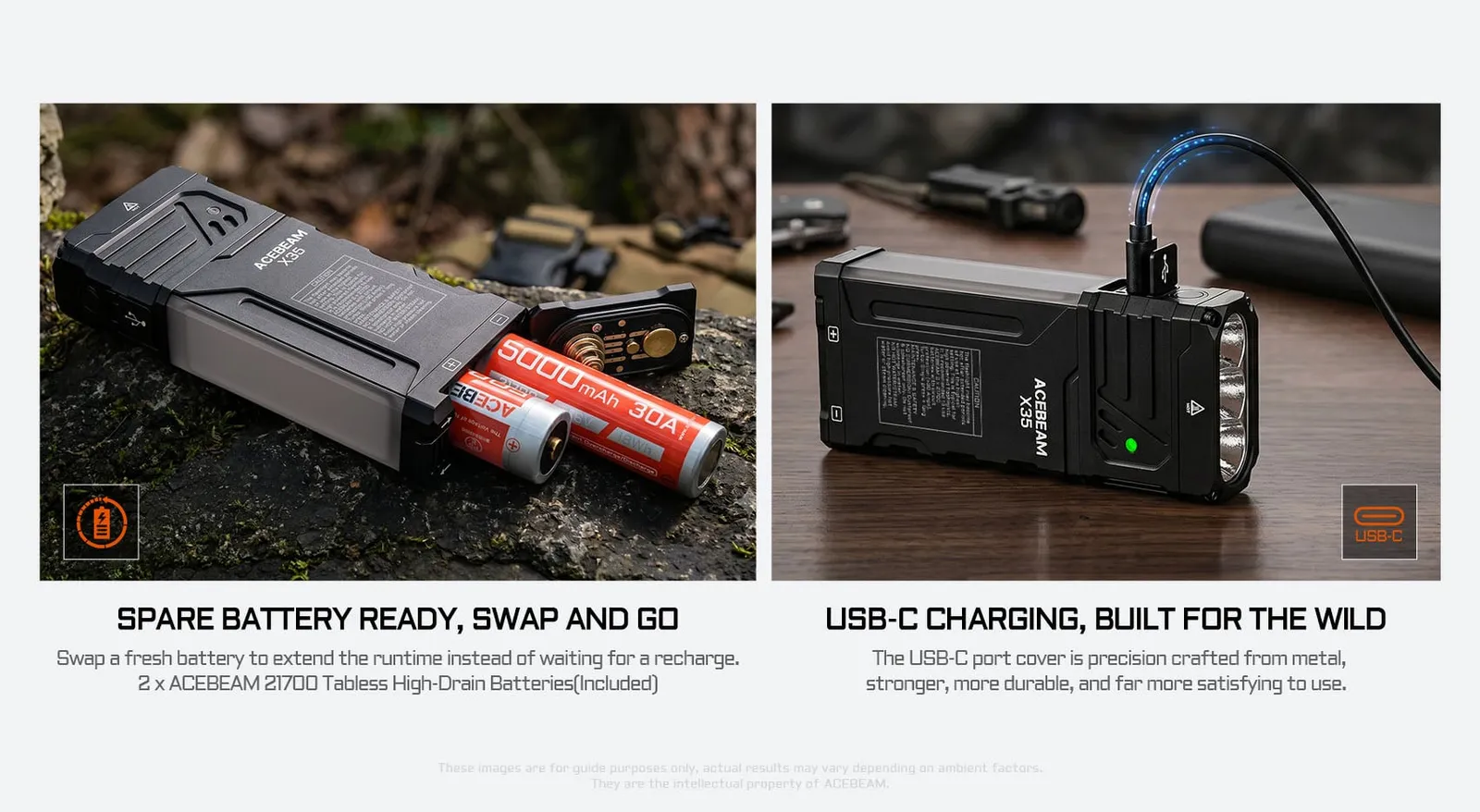

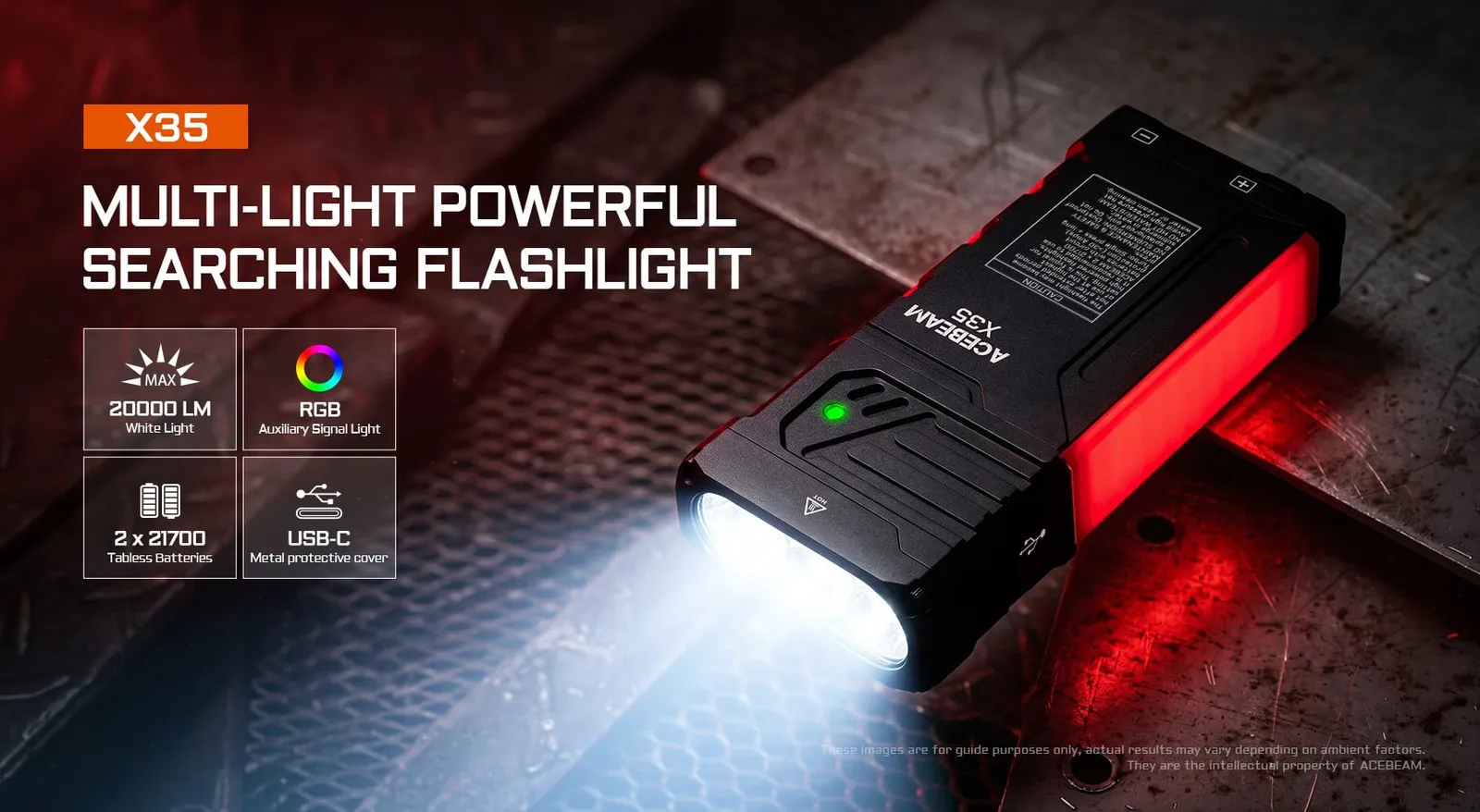

The Acebeam X35 is a multi-light-source powerful searchlight. Featuring three CREE LEDs, it delivers an exceptionally wide, uniform light up to 20,000 lumens. The RGB auxiliary side light can be used as a signal in a wide range of applications. The X35 is powered by two 5000mAh tabless high-drain 21700 batteries (30A continuous discharge) with triple balanced protection for safety, stability, and extended runtime. It features USB-C charging with a precision metal cover, plus the ability to swap batteries for extanded operation. Dual switches, one for the main light and one for the side light, allow for instant, intuitive control. Built for search & rescue, camping, caving, and large‑scale operations.
Features

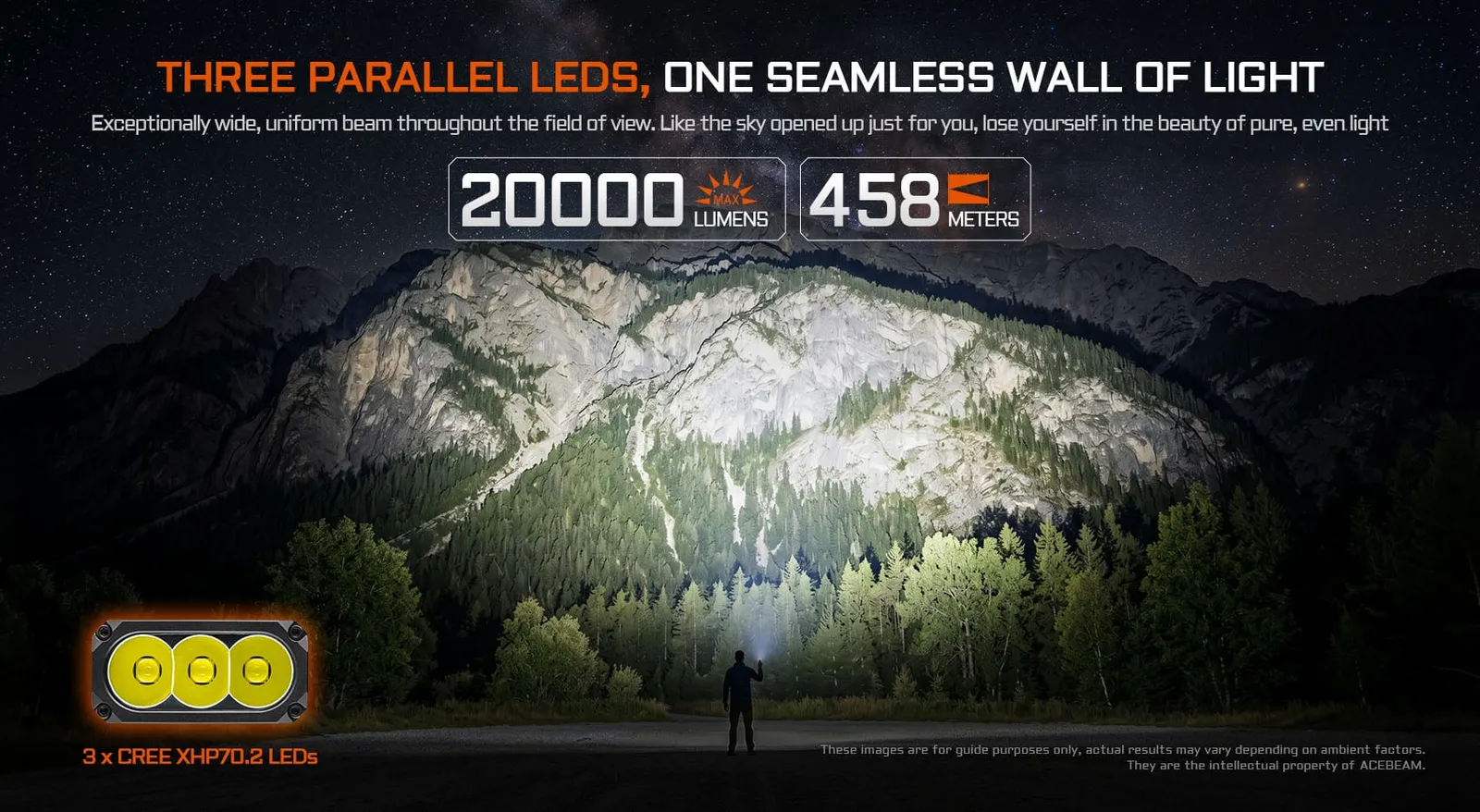

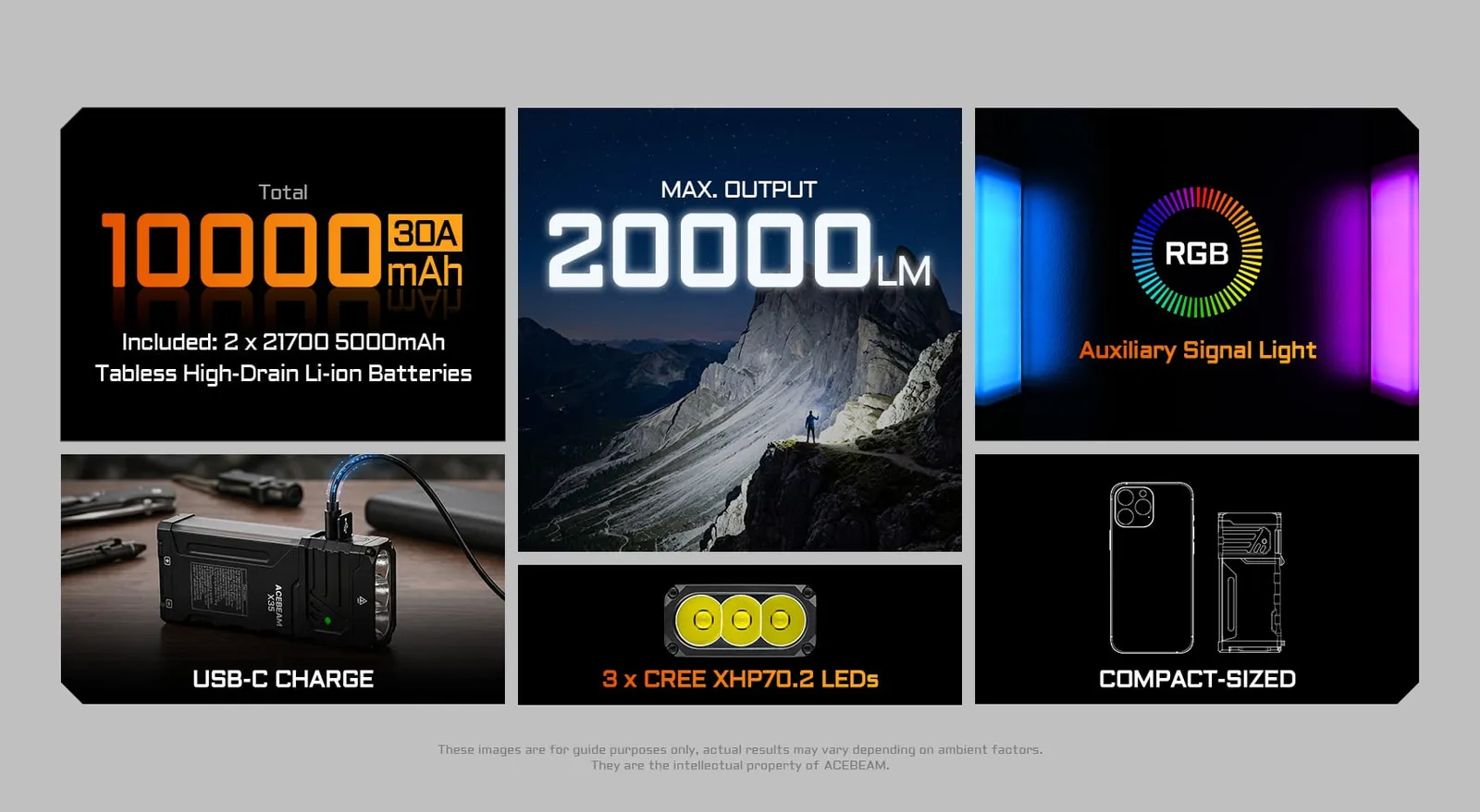

High Lumen Output: Delivers an exceptionally wide, uniform beam with a maximum output of 20000 lumens.

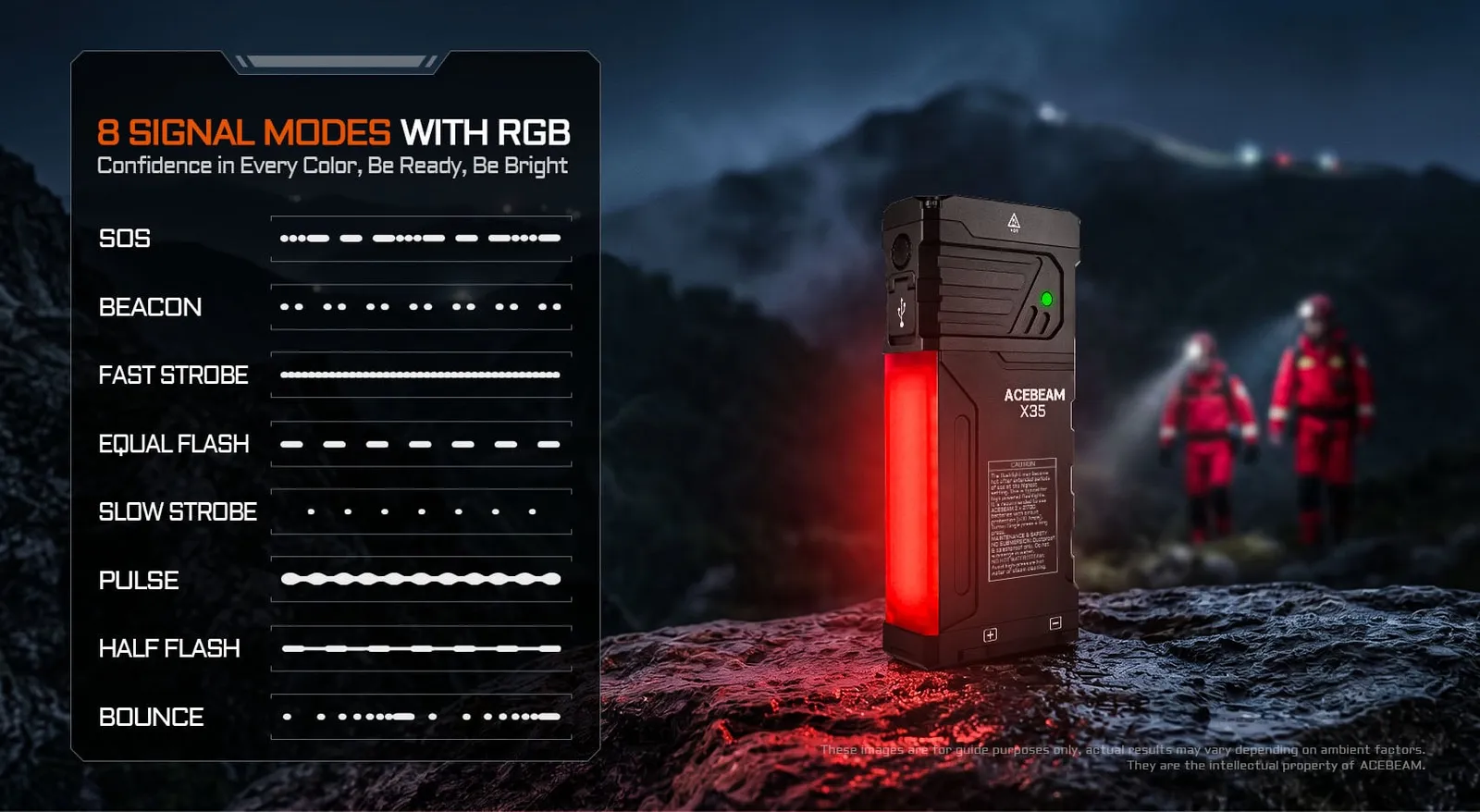

RGB Side Light: An RGB auxiliary side light allows switching between white and various RGB colours for different moods and scenes.

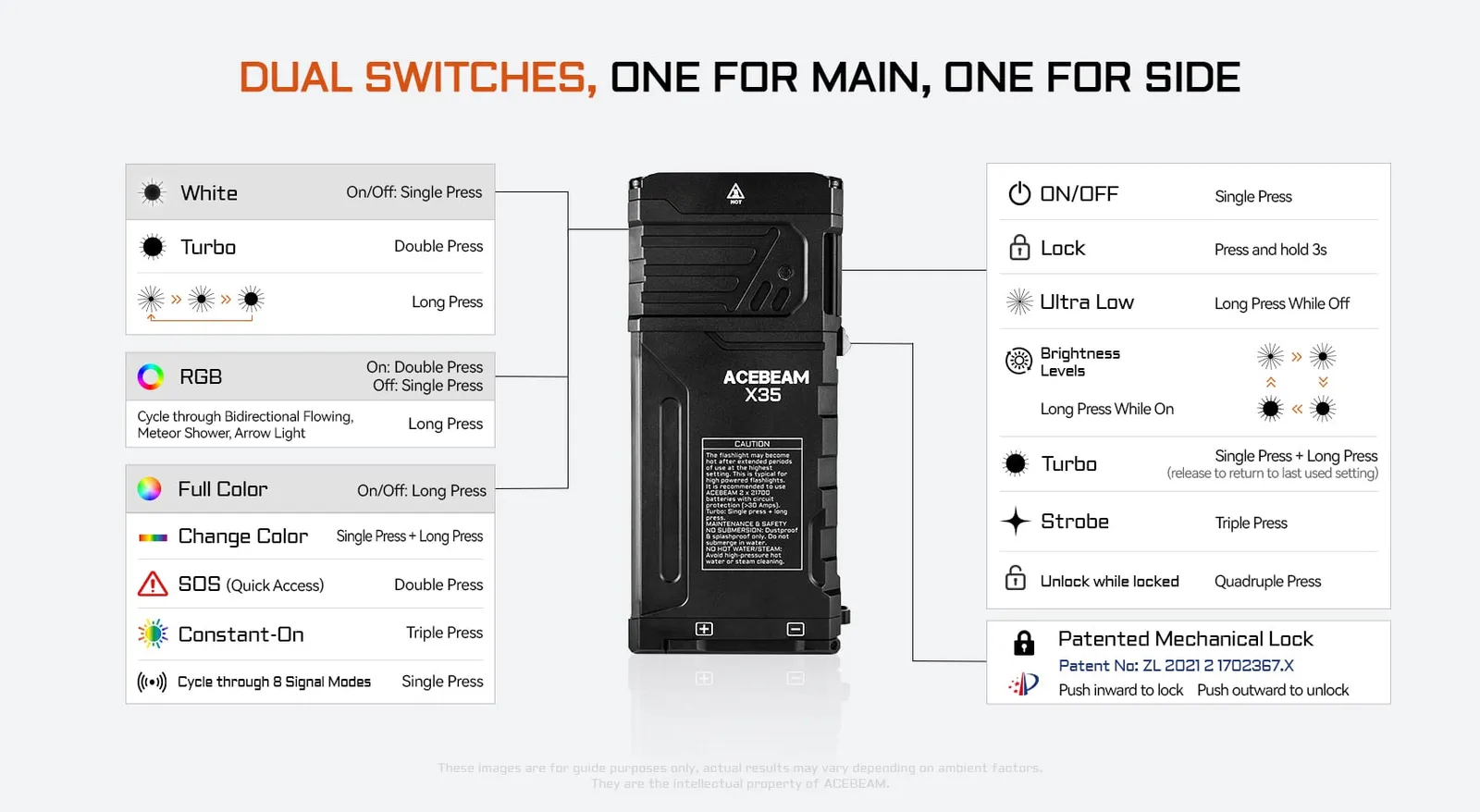

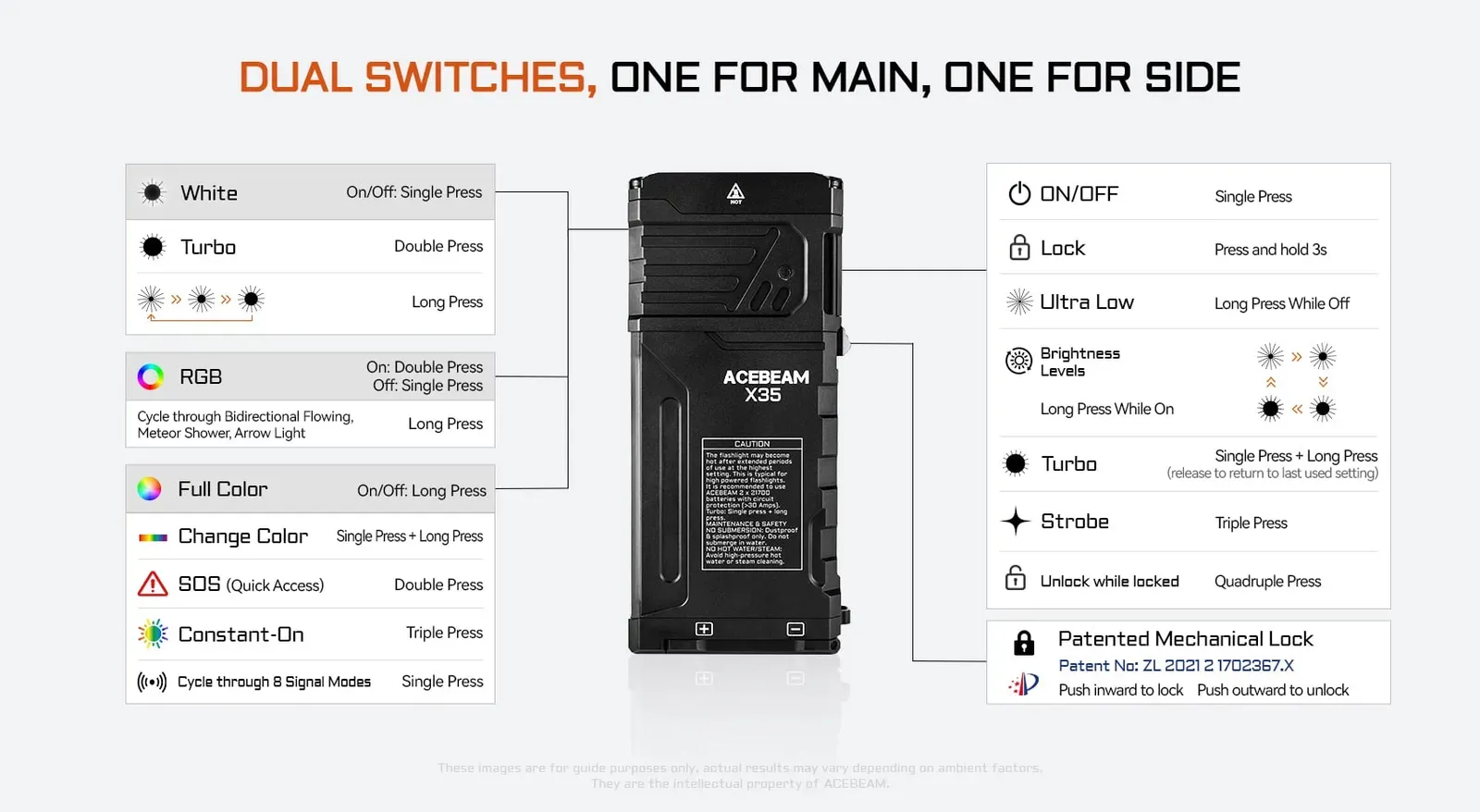

Dual Switch Control: Features separate switches for the main light and side light, providing instant and intuitive control.
Magnetic Tail Cap: Allows for hands-free attachment to metal surfaces.
Package Includes
1 x Acebeam X35

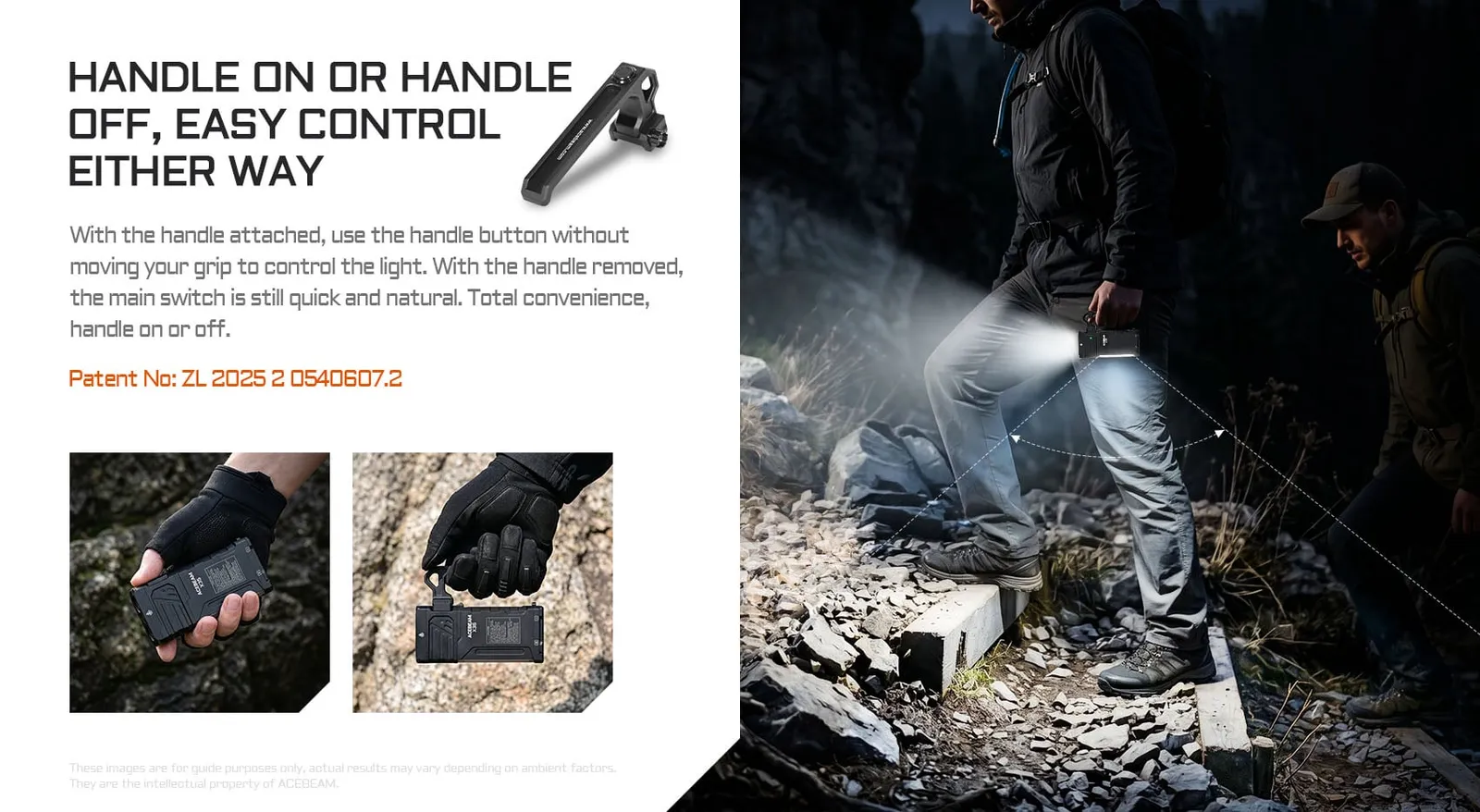

1 x Detacheable Handle
2 x Acebeam AB21CP5030 Rechargeable Batteries
1 x USB Charging Cable (USB-A to USB-C)
1 x Nylon holster
1 x Lanyard
2 x O-rings
1 x User Manual
Key Information
Feature
Details
Primary Light Source
3 x CREE XHP70.2 LEDs
Auxiliary Light Source
1 x RGB Light Source
Power Source
2 x Acebeam AB21CP5030 Protected High-drain 21700 Rechargeable Li-ion Batteries
Recharging Method
USB Type-C
Material
Aluminium alloy
Warranty (Torch)
10 years
Warranty (Batteries)
1 year
Warranty (Accessories)
1 year
Feature
Details
Primary Light Source
3 x CREE XHP70.3 LEDs
Auxiliary Light Source
1 x RGB Light Source
Power Source
2 x Acebeam AB21CP5030 Protected High-drain 21700 Rechargeable Li-ion Batteries
Recharging Method
USB Type-C
Material
Aluminium alloy
Warranty (Torch)
10 years
Warranty (Batteries)
1 year
Warranty (Accessories)
1 year
ANSI/PLATO FL1 Specifications
Feature
Measurement
Maximum Light Output
20000 lumens
Maximum Runtime
58 hours
Maximum Beam Distance
458 metres
Peak Beam Intensity
52441 candela

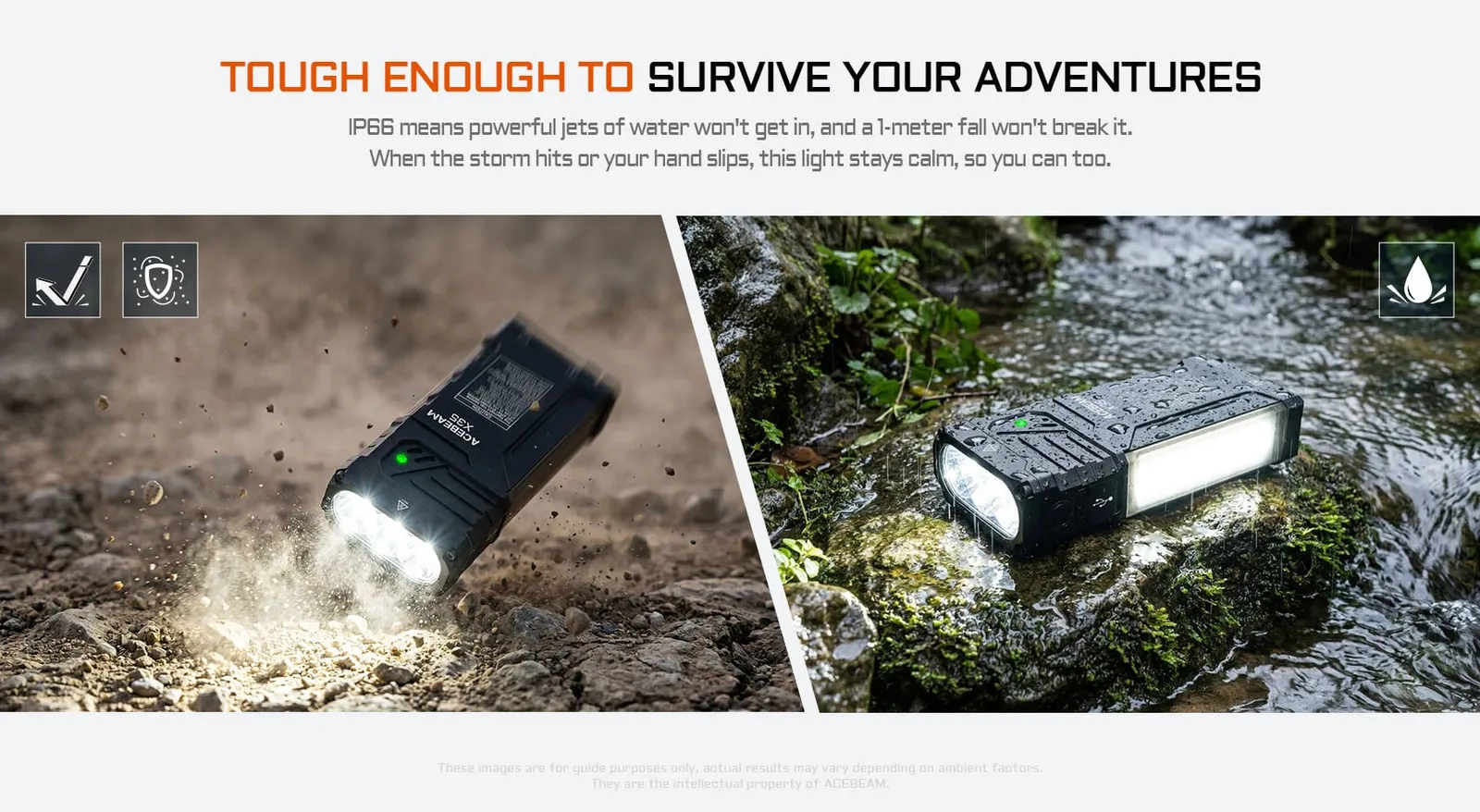

Impact Resistance
1 metre
Ingress Protection Rating
IP66
Feature
Measurement
Maximum Light Output
18000 lumens
Maximum Runtime
58 hours
Maximum Beam Distance
551 metres
Peak Beam Intensity
75900 candela
Impact Resistance
1 metre
Ingress Protection Rating
IP66

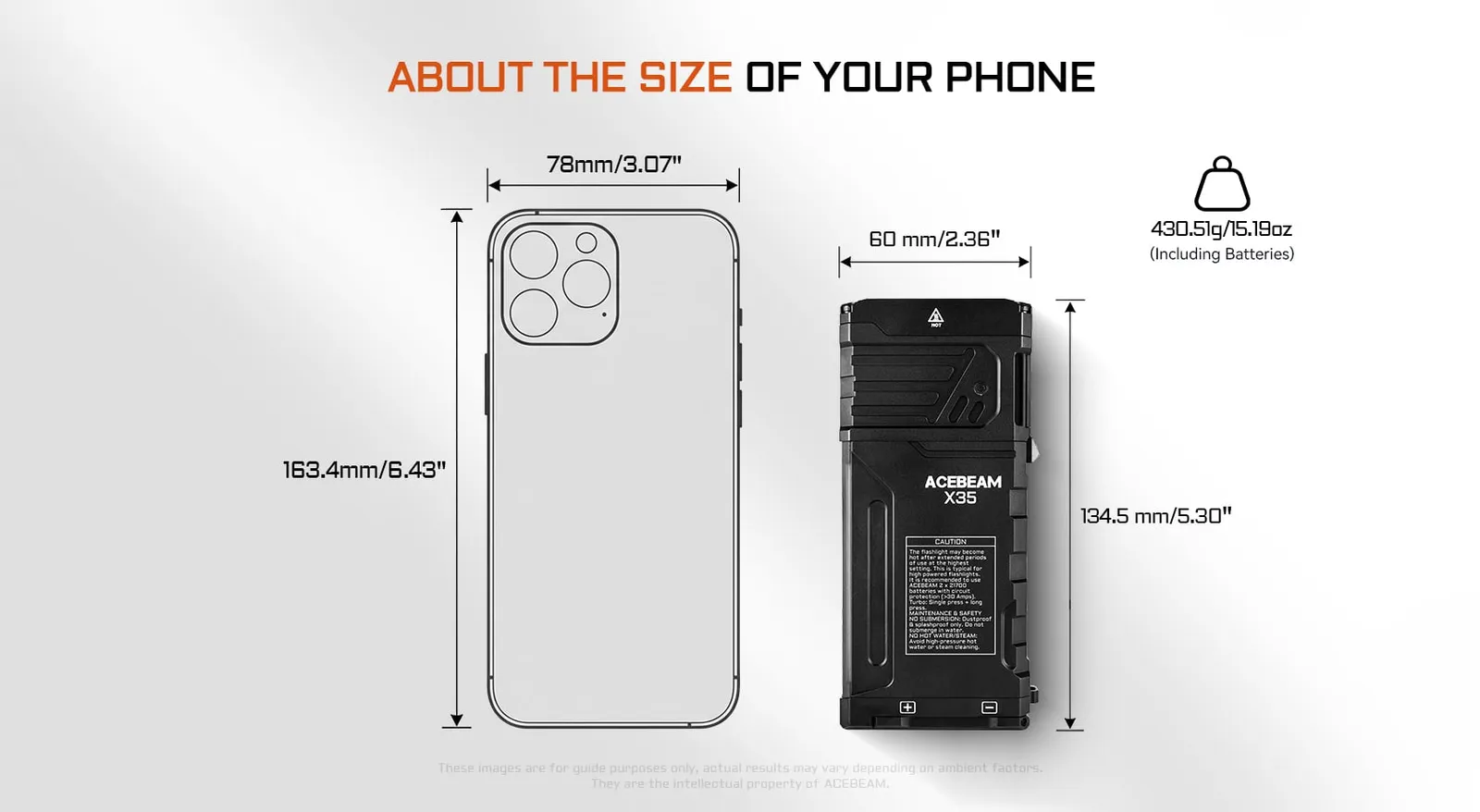

Dimensions
Feature
Measurement
Length
134.5 mm
Width
63.5 mm
Weight
480.81 g
Additional Data
ANSI PLATO FL1
Turbo
High
Med2
Med1
Low
Ultra-Low
Strobe
Max Output
20000 lm
3000~2000~1050lm
1050 lm
500 lm
120 lm
40 lm
20000~3000 lm
Max Runtime
—
10min+2h+40min
5.1h
11.5h
38h
58h
1min+3h
Max Beam Distance
458 m
142 m
84 m
56 m
25 m
15 m
458 m
Peak Beam Intensity
52441 cd
5041 cd
1764 cd
784 cd
156 cd
56 cd
52441 cd
Notice: The above-mentioned parameters (tested with 2 x ACEBEAM 21700 batteries) have been measured in accordance with the international flashlight testing standard ANSI/ PLATO FLI, and are approximate and may vary from flashlight, batteries, and environments.
ANSI PLATO FL1
Turbo
High
Med2
Med1
Low
Ultra-Low
Strobe
Max Output
18000 lm
3000~2000~1050lm
1050 lm
500 lm
120 lm
40 lm
18000~3000 lm
Max Runtime
—
10min+2h+40min
5.1h
11.5h
38h
58h
1min+3h
Max Beam Distance
551 m
179 m
107 m
72 m
35 m
20 m
551 m
Peak Beam Intensity
75900 cd
8010 cd
2862 cd
1296 cd
306 cd
100 cd
75900 cd
Notice: The above-mentioned parameters (tested with 2 x ACEBEAM 21700 batteries) have been measured in accordance with the international flashlight testing standard ANSI/ PLATO FLI, and are approximate and may vary from flashlight, batteries, and environments.
Performance and Runtime Disclaimer
How to read the data: The outputs provided above are maximum outputs for each mode, and the runtimes provided are the time it takes to drop to 10% of the initial output. This is in line with the International Flashlight Testing Standard ANSI FL1.
Any visual representations (graphs) of the data are approximate only.
Read more
The actual output of the torch/headlamp is controlled by an in-built temperature regulation system. As the torch/headlamp heats up, the brightness will drop to prevent overheating. The Turbo modes of torches/headlamps usually drop down significantly after anything from 15 seconds to 2 minutes. High modes often also experience a drop down over time. Medium and Low modes, however, can be constant for very close to the length of time specified. As the torch/headlamp cools down, either from being turned off or from being used on a lower output level, you will be able to access higher brightness levels again.
Example: An output of 2000 lumens and runtime of 5 hours does not mean 2000 lumens for 5 hours — it means it starts at 2000 lumens and drops below 200 lumens after 5 hours of continuous use.
Turbo and high modes may be unavailable or limited as the battery gets low on charge.
Exact specifications can vary between torches, batteries, age and environments.
