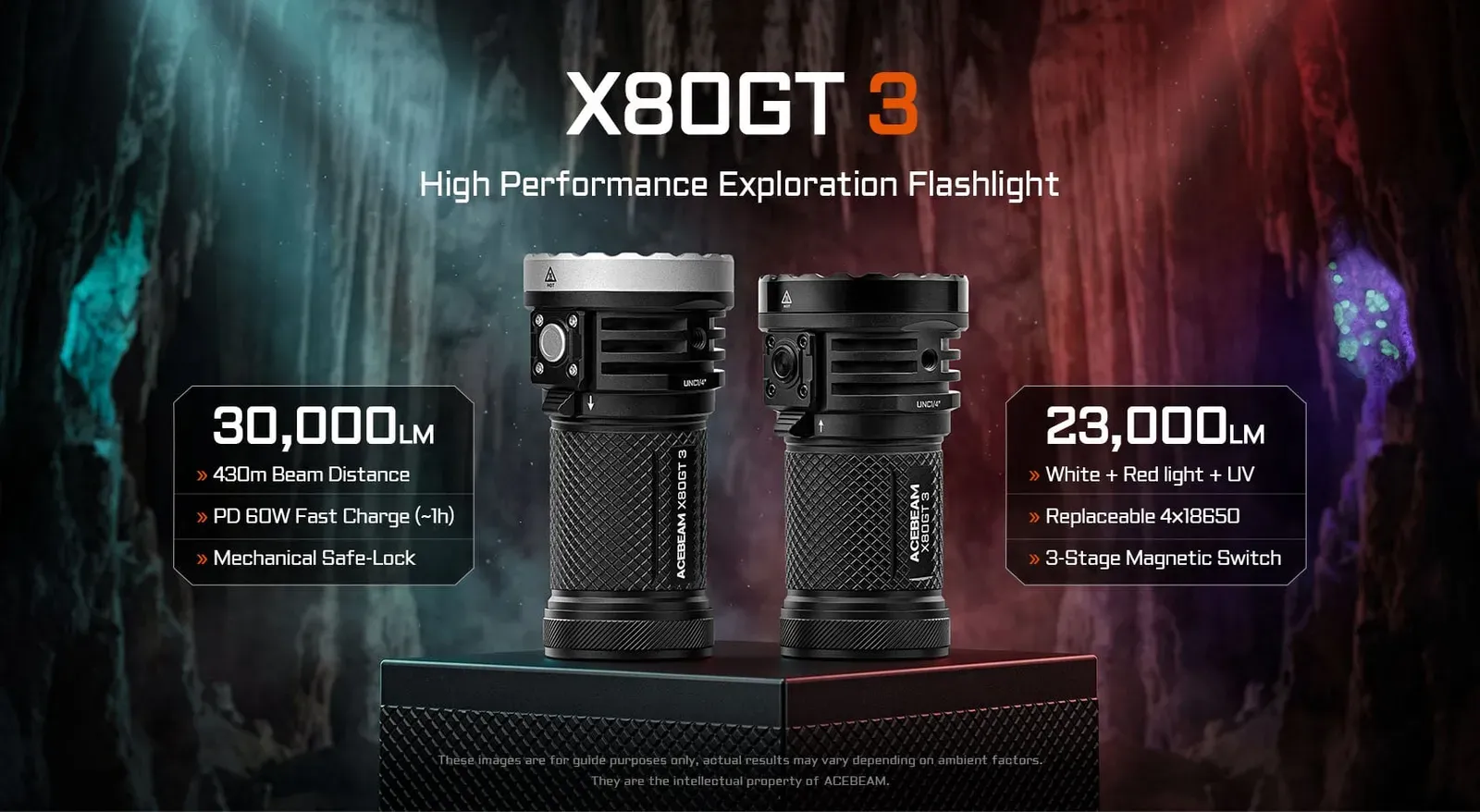

The Acebeam X80GT 3 is a compact high-output torch designed for caving and exploration. The white light version uses 24 6000K LEDs to deliver up to 30000 lumens with a beam distance of 430 metres, and recharges its built-in 4 x 18650 battery pack over USB-C at up to 60W in about 1 hour. Two multi-light versions pair 18 cool white 6000K LEDs or 18 Nichia 519A 5000K high CRI LEDs with 4 red and 2 UV LEDs, and run on a swappable 4 x 18650 battery compartment. A CRI 95+ side light works on its own or together with the main beam, and stepless dimming adjusts the output smoothly without PWM flicker. The AL6061-T6 aluminium body is IP68 rated and 1 metre drop tested, with a magnetic mechanical lock, a patented detachable handle and a UNC 1/4" threaded socket for tripods.
Features
Three LED Options: All cool white LEDs for the highest output, cool white with red and UV, or Nichia 519A high CRI with red and UV.

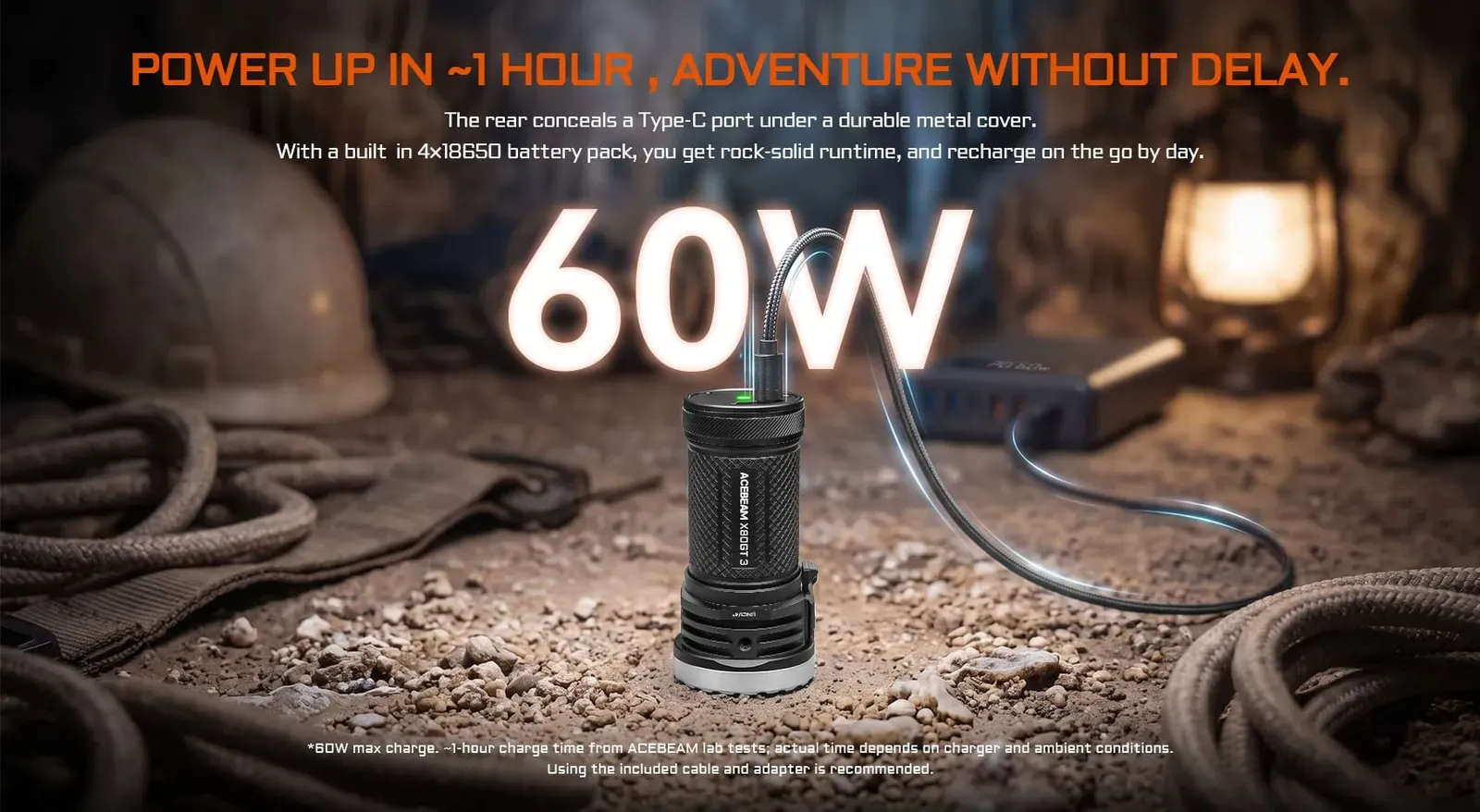

60W USB-C Charging: Recharges in about 1 hour through a USB-C port under a metal cover (white light version).
CRI 95+ Side Light: Lights the ground at your feet on its own, or runs together with the main beam.
Stepless Dimming: Non-PWM output adjusts smoothly from 150 to 3500 lumens on the white light version (100 to 3200 lumens multi-light, 80 to 2200 lumens 519A).

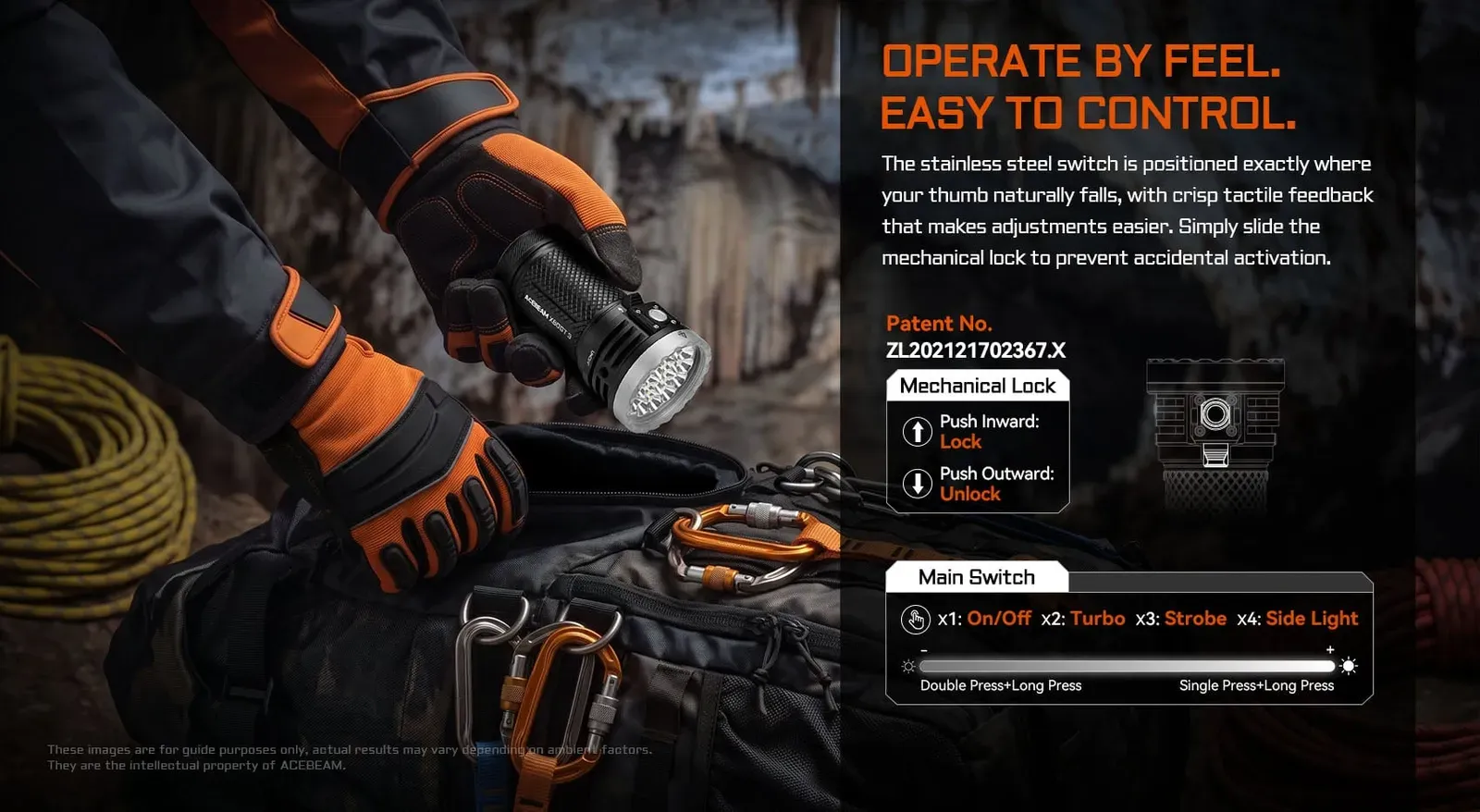

Magnetic Mechanical Lock: Push the lock inward to stop accidental activation, outward to unlock.
Detachable Handle: The patented handle improves grip and comes off to save space; a UNC 1/4" socket takes tripods.
Package Includes
1 x Acebeam X80GT 3
1 x 65W Super Fast Charging USB-C Adaptor
1 x USB Charging Cable (USB-C to USB-C)
1 x Detachable Handle
1 x Lanyard
2 x Spare O-ring
1 x User Manual
Key Information
Feature
Details
Primary Light Source
24 x 6000K Cool White LEDs
Auxiliary Light Source
1 x 6500K CRI 95+ Light Source
Power Source
Built-in 4 x 18650 High-drain Lithium-ion Battery Pack
Recharging Method
USB Type-C
Material
Aluminium alloy
Warranty (Torch)
2 years
Warranty (Accessories)
1 year
Feature
Details
Primary Light Source
18 x 6000K Cool White LEDs
Auxiliary Light Sources
Red: 4 x 660nm Red LEDs UV: 2 x 365nm UV LEDs Side Light: 1 x 6500K CRI 95+ Light Source
Power Source
4 x Acebeam 18650 3000mAh High-drain Protected Lithium-ion Batteries
Recharging Method
USB Type-C
Material
Aluminium alloy
Warranty (Torch)
10 years
Warranty (Batteries)
1 year
Warranty (Accessories)
1 year
Feature
Details
Primary Light Source
18 x Nichia 519A 5000K Neutral White LEDs
Auxiliary Light Sources
Red: 4 x 660nm Red LEDs UV: 2 x 365nm UV LEDs Side Light: 1 x 6500K CRI 95+ Light Source
Power Source
4 x Acebeam 18650 3000mAh High-drain Protected Lithium-ion Batteries
Recharging Method
USB Type-C
Material
Aluminium alloy
Warranty (Torch)
10 years
Warranty (Batteries)
1 year
Warranty (Accessories)
1 year
ANSI/PLATO FL1 Specifications
Feature
Measurement
Maximum Light Output
30000 lumens
Maximum Runtime
23.5 hours
Maximum Beam Distance
430 metres
Peak Beam Intensity
46225 candela
Impact Resistance
1 metre
Ingress Protection Rating
IP68
Feature
Measurement
Maximum Light Output
23000 lumens
Maximum Runtime
21 hours
Maximum Beam Distance
401 metres
Peak Beam Intensity
40200 candela
Impact Resistance
1 metre
Ingress Protection Rating
IP68
Feature
Measurement
Maximum Light Output
15500 lumens
Maximum Runtime
21 hours
Maximum Beam Distance
300 metres
Peak Beam Intensity
22500 candela
Impact Resistance
1 metre
Ingress Protection Rating
IP68

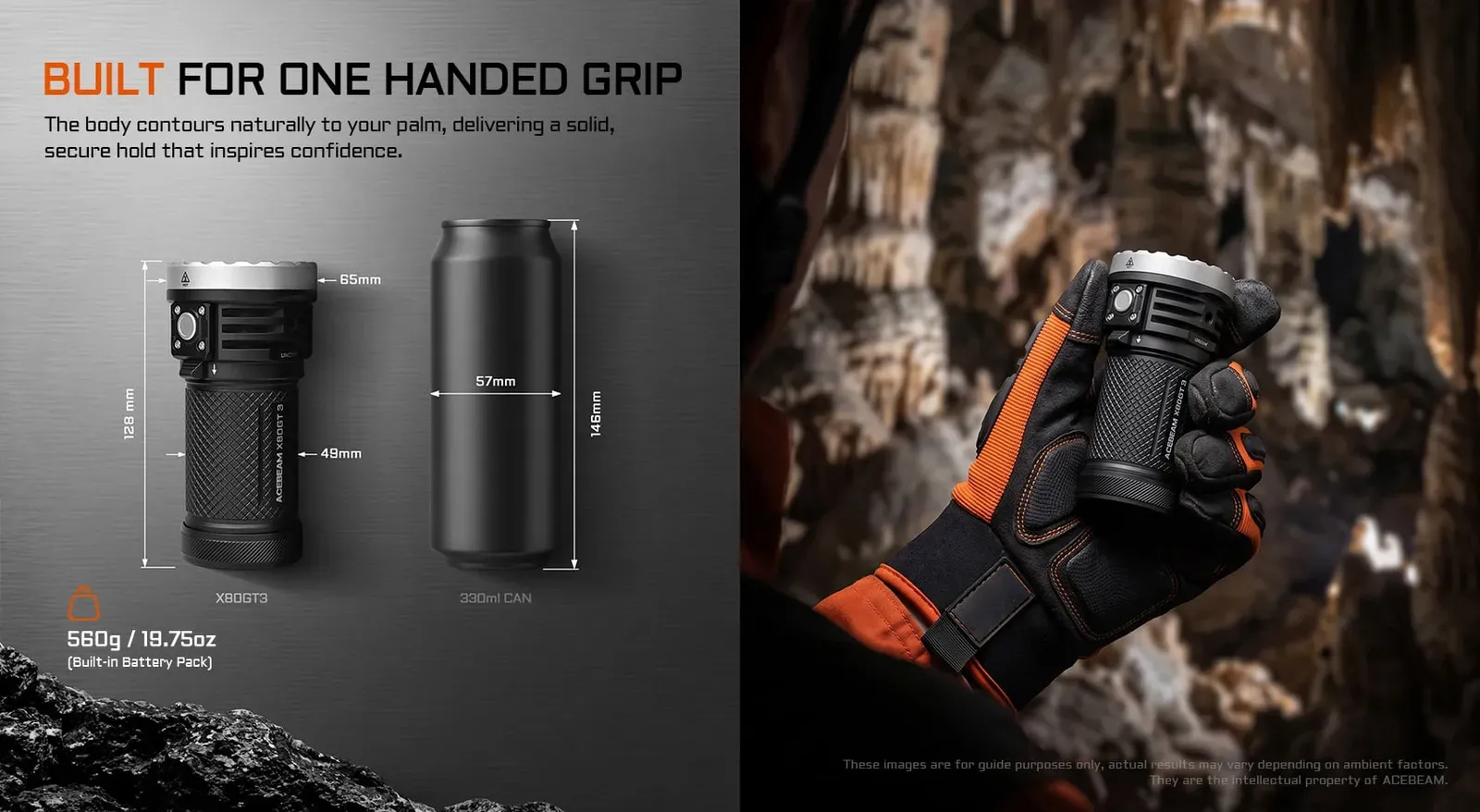

Dimensions
Feature
Measurement
Length
128 mm
Head Diameter
65 mm
Body Diameter
49 mm
Weight
560 g
Feature
Measurement
Length
119.3 mm
Head Diameter
65 mm
Body Diameter
49 mm
Weight
556.7 g
Feature
Measurement
Length
119.3 mm
Head Diameter
65 mm
Body Diameter
49 mm
Weight
556.7 g

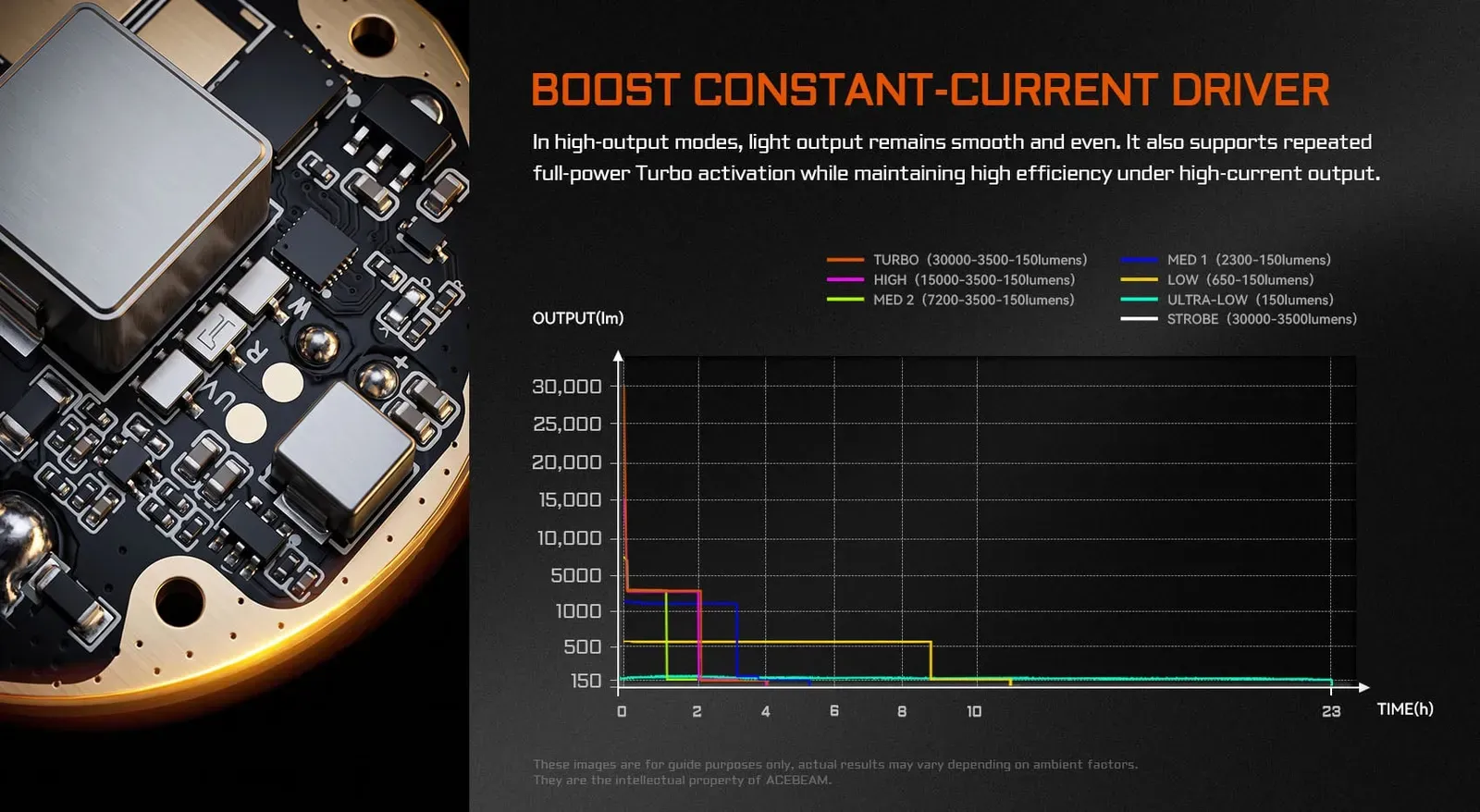

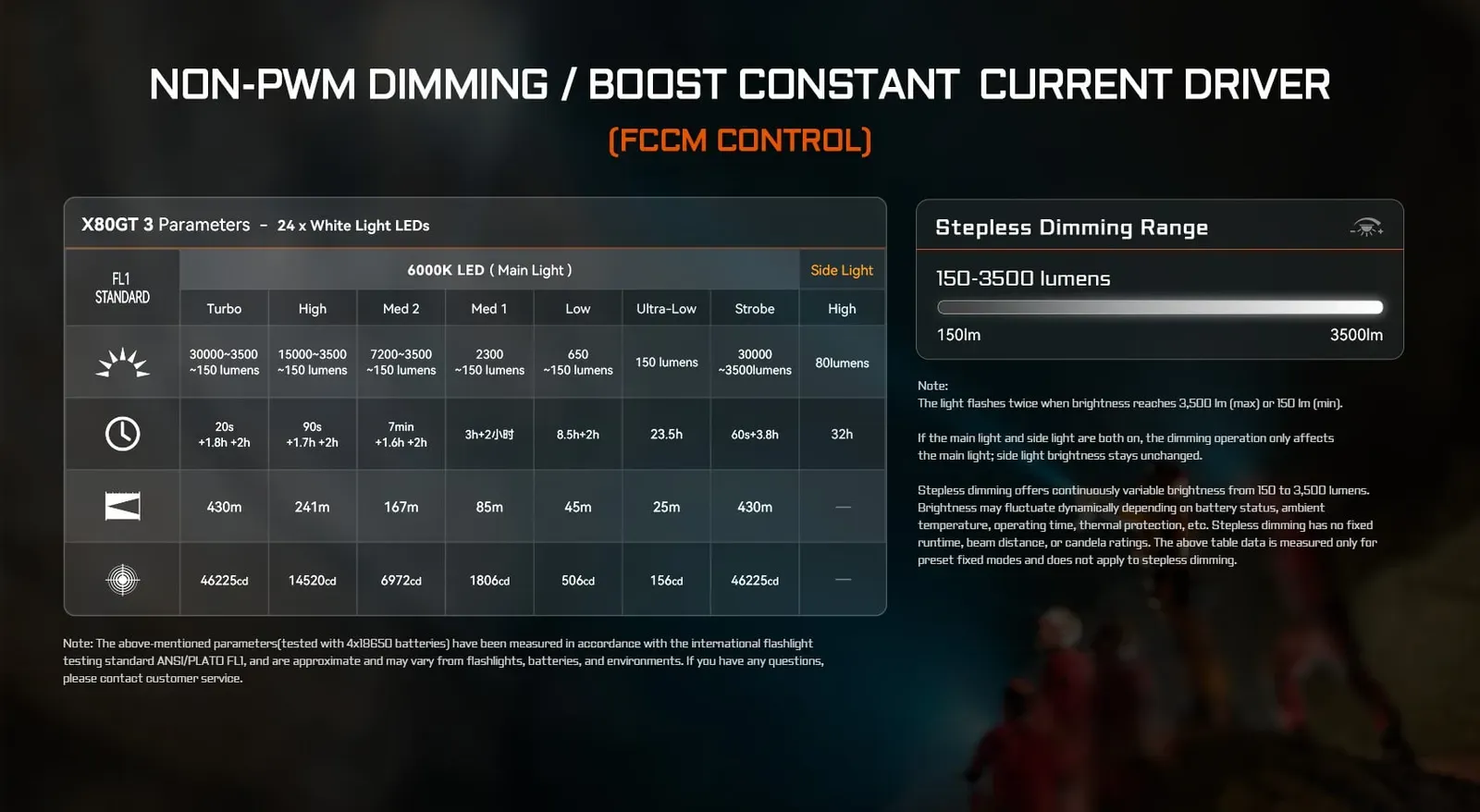

Additional Data
FL1 STANDARD
Turbo
High
Med 2
Med 1
Low
Ultra Low
Strobe
Max Output
30,000~3,500~150 lumens
15,000~3,500~150 lumens
7,200~3,500~150 lumens
2,300~150 lumens
650~150 lumens
150 lumens
30,000~3,500 lumens
Max Runtime
20s + 1.8h + 2h
90s + 1.7h + 2h
7min + 1.6h + 2h
3h + 2h
8.5h + 2h
23.5h
60s + 3.8h
Max Beam Distance
430 m
241 m
167 m
85 m
45 m
25 m
430 m
Peak Beam Intensity
46,225 cd
14,520 cd
6,972 cd
1,806 cd
506 cd
156 cd
46,225 cd
Tested with 24 x 6000K LEDs (Cool White version).
FL1 STANDARD
Turbo
High
Med 2
Med 1
Low
Ultra Low
Strobe
Max Output
23,000~3,200~100 lumens
10,000~3,200~100 lumens
5,100~3,200~100 lumens
1,850~100 lumens
450~100 lumens
100 lumens
23,000~3,200 lumens
Max Runtime
30s + 1h 51min + 70min
4min + 1h 45min + 70min
20min + 1h 35min + 70min
3.5h + 70min
11h + 70min
21h
80s + 4h 10min
Max Beam Distance
401 m
210 m
147 m
78 m
39 m
22 m
401 m
Peak Beam Intensity
40,200 cd
11,025 cd
5,402 cd
1,521 cd
380 cd
121 cd
40,200 cd
Tested with 18 x 6000K LEDs (Cool White + Red + UV version).
FL1 STANDARD
Turbo
High
Med 2
Med 1
Low
Ultra Low
Strobe
Max Output
15,500~2,200~80 lumens
6,900~2,200~80 lumens
3,500~2,200~80 lumens
1,300~80 lumens
330~80 lumens
80 lumens
15,500~2,200 lumens
Max Runtime
30s + 1h 51min + 70min
4min + 1h 45min + 70min
20min + 1h 35min + 70min
3.5h + 70min
11h + 70min
21h
80s + 4h 10min
Max Beam Distance
300 m
145 m
101 m
64 m
34 m
19 m
300 m
Peak Beam Intensity
22,500 cd
5,256 cd
2,550 cd
1,024 cd
289 cd
90 cd
22,500 cd
Tested with 18 x Nichia 519A 5000K neutral white high CRI LEDs (Nichia 519A + Red + UV version).
FL1 STANDARD
High
Med
Low
Max Output
80 lumens
30 lumens
4 lumens
Max Runtime
32h
115h
470h
6500K CRI 95+ side light, available on all three versions.
FL1 STANDARD
High
Med
Low
Max Output
400 lumens
130 lumens
20 lumens
Max Runtime
4h
15h
88h
Max Beam Distance
38 m
23 m
10 m
Peak Beam Intensity
361 cd
132 cd
25 cd
Red 660nm, available on the Cool White + Red + UV and Nichia 519A + Red + UV versions.
FL1 STANDARD
High
Med
Low
Max Output
1,300 mW
400 mW
64 mW
Max Runtime
11h
35h
158h
UV 365nm, available on the Cool White + Red + UV and Nichia 519A + Red + UV versions.
Performance and Runtime Disclaimer
How to read the data: The outputs provided above are maximum outputs for each mode, and the runtimes provided are the time it takes to drop to 10% of the initial output. This is in line with the International Flashlight Testing Standard ANSI FL1.
Any visual representations (graphs) of the data are approximate only.
Read more
The actual output of the torch/headlamp is controlled by an in-built temperature regulation system. As the torch/headlamp heats up, the brightness will drop to prevent overheating. The Turbo modes of torches/headlamps usually drop down significantly after anything from 15 seconds to 2 minutes. High modes often also experience a drop down over time. Medium and Low modes, however, can be constant for very close to the length of time specified. As the torch/headlamp cools down, either from being turned off or from being used on a lower output level, you will be able to access higher brightness levels again.
Example: An output of 2000 lumens and runtime of 5 hours does not mean 2000 lumens for 5 hours — it means it starts at 2000 lumens and drops below 200 lumens after 5 hours of continuous use.
Turbo and high modes may be unavailable or limited as the battery gets low on charge.
Exact specifications can vary between torches, batteries, age and environments.
